Prismatic Polycarbonate Sheet
photo_size_select_smallCut to size
{{coloursLength}} Colours
From
€{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }}
€{{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }}
From
€{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }}
€{{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }}
Bespoke Fabrication
We have the machinery and expertise to manufacture bespoke items in acrylic, polycarbonate and many other plastics, from one-offs to large production runs. Read more about the various services we offer, or complete the form below to request a quote.
CNC Routing
Our advanced Multicam Apex 3R (3 Axis) CNC routers allow us to provide an extensive range of precision CNC routing services. Read more
CNC Laser Cutting
Laser cutting is a fabrication process that uses a thin, intensely focused stream of light to cut through a range of different materials, including plastics and acrylics. Read more
Diamond & Flame polishing
Edge polishing is a fabrication process that polishes the edges of acrylic panels, removes any cutting marks, and achieves a smooth, glossy finish. Read more
Rotary & Laser Engraving
Laser engraving is a fabrication process that uses a laser beam to physically remove the surface of a material to create an indentation that is noticeable to both the eye and touch. Read more
Line Bending
Line bending is a process that’s used to make precise folds in plastic and acrylic components. Our line bending fabrication service allows us to bend plastic and acrylic sheets along a defined ‘line’ – without any need for gluing or joining. Read more
Have bespoke requirements?
Complete this form and we will get back to you with a quote.

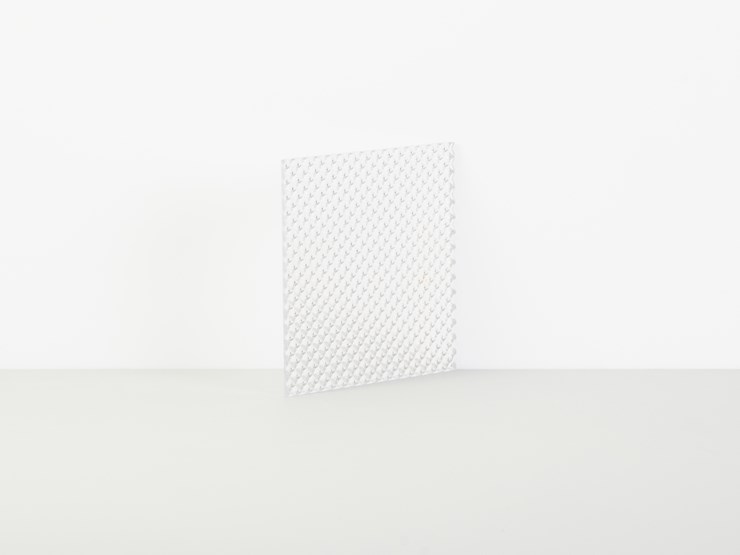

Prismatic polycarbonate sheet with a textured pattern on one side is a lightweight, translucent material optimised for light transmission and diffusion making it a popular choice for lighting applications.
Key features
- Light diffusion
- Excellent light transmission
- Weather resistance
- Lightweight
- Impact resistance
- Flame resistant
- Recyclable
Typical applications
- Lighting applications
- Skylight
- Interior partiton/screen
- Exhibition display
- Interior decoration
- Exterior decoration material
Detailed description
Light diffusion
The prismatic pattern on the sheet is optimised for light transmission and light diffusion making it a popular choice for lighting applications.
Impact resistance
Being polycarbonate the sheet is very strong with high resistance to impact.
Decorative pattern
The prismatic pattern is an attractive finish and can be used creatively as well us functionally.
Weather resistant
Prismatic polycarbonate sheet is weather proof so can be used for glazing applications such as skylights.
Fire resistance
With a UK class 1 fire rating, polycarbonate sheet is suitable for use in public buildings when high flame resistance is required.
Recyclable
Polycarbonate sheet is fully recyclable. Material is sorted, shredded and washed before being ground up to be used again.
Stock sheet sizes
2500mm x 1250mm
Minimum panel size
50mm x 50mm
Maximum panel size
2500mm x 1250mm
Light transmission
87%
Relative density
0.83 g/cm³
Manufacturers thickness tolerance
+/- 5 % (e.g. 5mm cast sheet could vary from 4.75mm to 5.25mm)
Cutting tolerance
+/- 1mm
Material protection
Protective film on non textured surface
Fire rating
UK Class 1
Service temperature
-50 to +100°c
Vicat softening temperature
150°c
Water absorption
150°c
Recyclable
Yes
Recycled content
30%
We offer fast, tracked delivery across Europe, using recognised couriers including DHL.
Not shipping to Europe? Visit our UK store or North America store for delivery to your region.
Where we deliver
We currently deliver to Austria, Belgium, the Czech Republic, France, Germany, Greece, Ireland, Italy, the Netherlands, Poland, Portugal and Spain.
How delivery is priced
European delivery is priced by the size and weight of your panel, based on the band your order falls into:
| Panel size (up to) | Weight (up to) | Delivery |
|---|---|---|
| 500mm × 500mm | 10kg | €15 |
| 750mm × 750mm | 15kg | €20 |
| 1000mm × 1000mm | 25kg | €25 |
Orders that exceed the weight allowance for their band are charged €1 per additional kg.
Delivery times
Delivery takes 5–7 working days.
Customs, import taxes and VAT
Our checkout meets EU customs and import requirements in full, so there are no surprises once your order ships. At checkout, you can choose how import taxes and duties are handled:
- Delivered Duty Paid (DDP) — we collect and pay all import taxes and duties on your behalf. Your order arrives at your door with nothing more to pay.
- Delivered At Place (DAP) — available to businesses with an EORI number. You act as the importer of record and settle any import VAT and duties directly.
Can I collect my order from Simply Plastics?
Yes, of course. Orders can be collected from our premises in Colchester, Essex. At the final stage of the checkout process there is a delivery option labelled "Collection/pickup" which is free. Once your order is complete, you will be notified by email along with our address and collection times.
I need my order urgently, can I pay for faster shipping?
Yes. We offer an express delivery service which aims to deliver all orders in 1-3 working days. Orders are delivered by a recognised courier company and may require a signature on delivery.
Do you have a minimum order charge or small order fee?
This is a question we are asked fairly regularly due to the previlance of either a minimum order charge or small order fee within the industry.
At Simply Plastics our approach has always been to treat all orders equally, small or large. We want all customers, new and existing, to be able to place orders with us confident that they are only paying for the products and materials that they require. We therefore do not have a minimum order charge or small order fee.
How should I clean polycarbonate sheet?
Polycarbonate sheet should not be cleaned using chemical cleaners because they can cause damage to the material. We recommend cleaning polycarbonate sheet with warm soapy water and a soft cloth. There are various plastic cleaners and polishers available which we can provide that keep polycarbonate looking brand new.
Is it possible to cut polycarbonate sheet myself?
Polycarbonate sheet can be cut using a circular saw, a jigsaw or any type of saw with a fine-tooth blade. We recommend laying the polycarbonate sheet flat on a firm surface, such as a workbench, and clamping it down before cutting. If you are using clamps to hold the material down, we suggest placing wood between the clamps and polycarbonate sheet to prevent any damage to the surface of the polycarbonate. Manufacturer safety precautions should always be followed when using any type of saw. See our ultimate guide to polycarbonate for more information on polycarbonate and it's uses.
