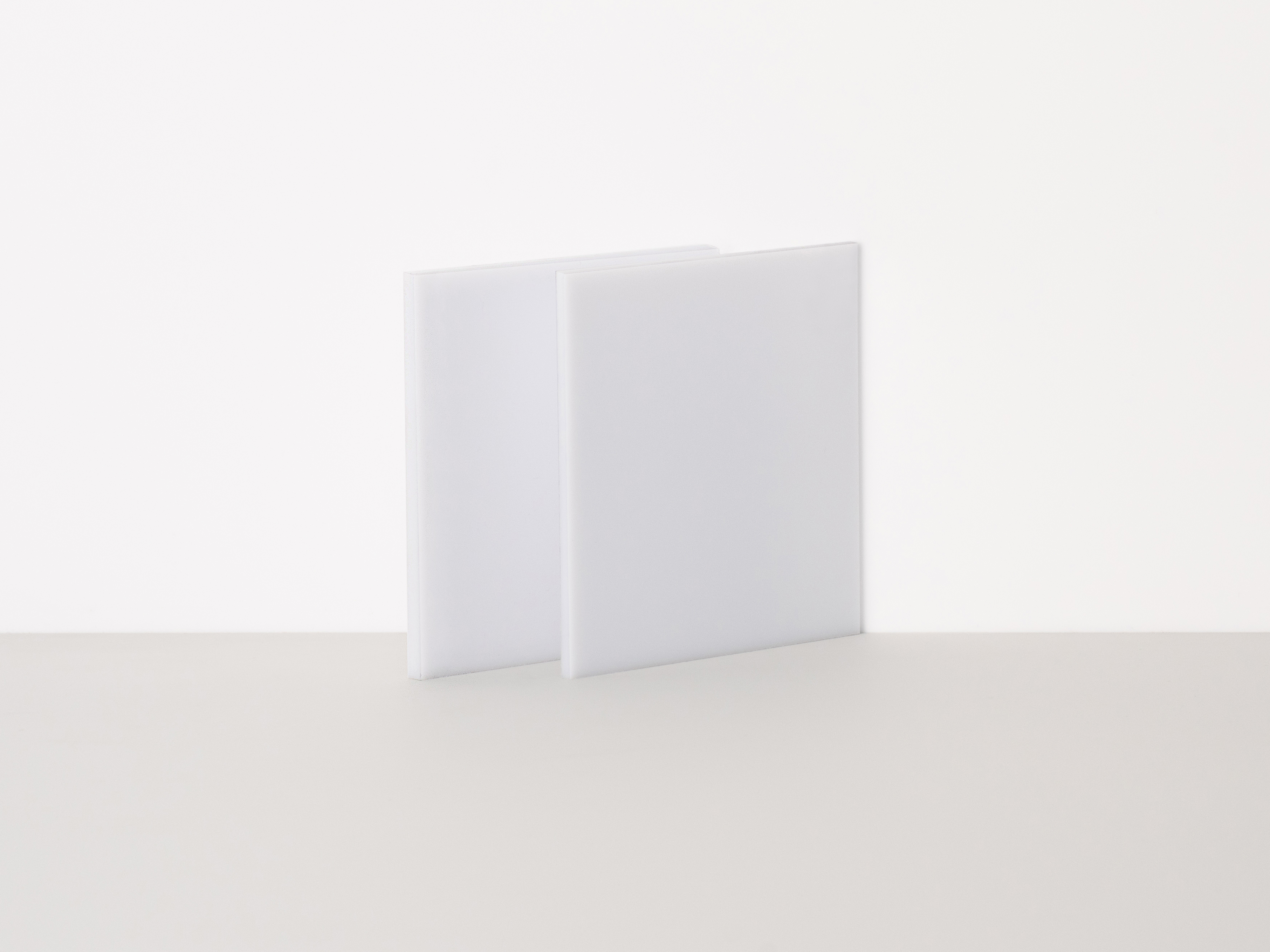

Suitable for use with many lighting applications, opal polycarbonate sheet is incredibly strong. The opal finish is white in colour and diffuses light evenly throughout the material. Polycarbonate sheet also benefits from a UK class 1 fire rating. Available in a range of thickness options and supplied cut-to-size.
Key features
- High impact resistance
- Even light diffusion
- High light transmission
- High fire rating
- Weather resistant
- Available cut-to-size
Typical applications
- Light box systems
- Ceiling lighting tiles
- Further detail:
- High impact resistance
Detailed description
Strength
Polycarbonate sheet is strong, durable material with high impact strength. Because of these high performance properties it’s often used within lighting systems in commercial and public buildings.
Even light diffusion
When used with a light source, light is diffused evenly across the material creating a soft glow. Frosted opal sheet is a popular choice for fluorescent tube light box signage systems.
Fire resistant
Polycarbonate sheet has a UK class 1 fire rating, Its high fire resistance makes it a popular choice for use in commercial and public buildings. Polycarbonate is often specified for use in public buildings because of its high fire resistance.
Weather resistance
Polycarbonate sheet is weather resistant and suitable for use for internal and external signage.
Available cut to size
Order sheets pre cut to your exact requirements.
Stock sheet sizes
3050mm x 2050mm, 2050mm x 1520mm, 2440mm x 1220mm
Minimum panel size
50mm x 50mm
Maximum panel size
3050mm x 2050mm
Light Transmission
3mm - 28%
5mm - 14%
Relative density
1.2 g/cm³
Manufacturers thickness tolerance
+/- 5 % (e.g. 5mm polycarbonate sheet could vary from 4.75mm to 5.25mm)
Cutting tolerance
+/- 1mm
Material protection
Protective film on both sides
Fire rating
UK Class 1
Service temperature
-50 to +100°c
Vicat softening temperature
150°c
Water absorption
0.15%
Recyclable
Yes
Recycled content
30%
