Obscure Georgian Wire Polycarbonate
photo_size_select_smallCut to size
{{coloursLength}} Colours
From
£{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }}
£{{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }}
From
£{{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }}
£{{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }}
Bespoke Fabrication
We have the machinery and expertise to manufacture bespoke items in acrylic, polycarbonate and many other plastics, from one-offs to large production runs. Read more about the various services we offer, or complete the form below to request a quote.
CNC Routing
Our advanced Multicam Apex 3R (3 Axis) CNC routers allow us to provide an extensive range of precision CNC routing services. Read more
CNC Laser Cutting
Laser cutting is a fabrication process that uses a thin, intensely focused stream of light to cut through a range of different materials, including plastics and acrylics. Read more
Diamond & Flame polishing
Edge polishing is a fabrication process that polishes the edges of acrylic panels, removes any cutting marks, and achieves a smooth, glossy finish. Read more
Rotary & Laser Engraving
Laser engraving is a fabrication process that uses a laser beam to physically remove the surface of a material to create an indentation that is noticeable to both the eye and touch. Read more
Line Bending
Line bending is a process that’s used to make precise folds in plastic and acrylic components. Our line bending fabrication service allows us to bend plastic and acrylic sheets along a defined ‘line’ – without any need for gluing or joining. Read more
Have bespoke requirements?
Complete this form and we will get back to you with a quote.

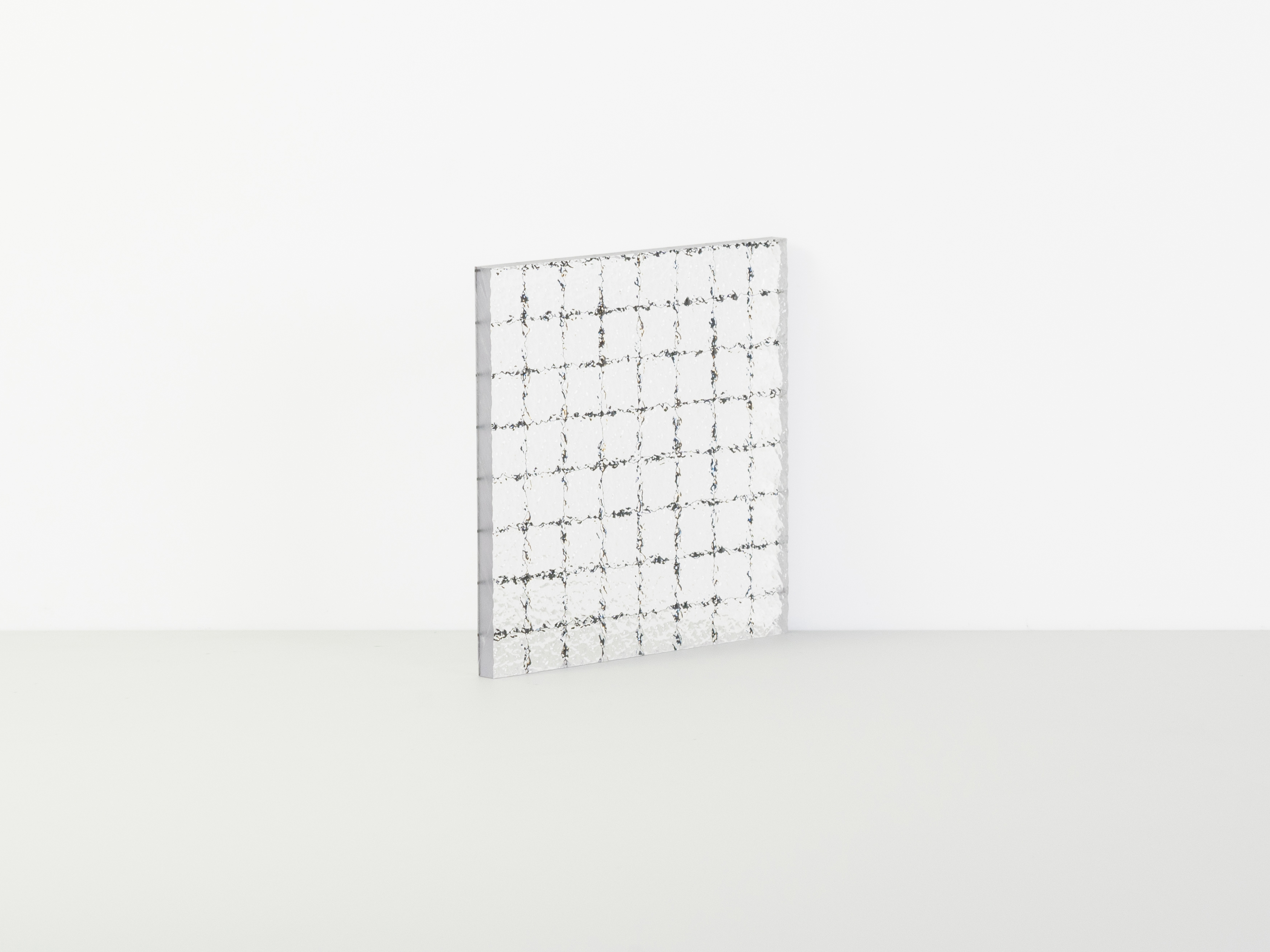

With the aesthetic of traditional Georgian wired glass this polycarbonate version obscures the view providing privacy while still transmitting high levels of light. The traditional grid pattern is etched directly to 6mm polycarbonate creating the effect of the steel cable within the glass version. The associated risks of working with glass can be greatly reduced by using this polycarbonate alternative.
Key features
- Obscure textured finish provides privacy
- Traditional Georgian wire grid pattern
- Virtually unbreakable
- Lightweight
- Safer than glass alternatives
- 10 year limited warranty against UV discolouration
- Fully recyclable
Typical applications
- Windows
- Door vision panels
- Roof glazing
- Sky lights
- Interior design
- Retail display
- Safety glazing
- Heritage and listing building glazing
Obscure textured finish
A clear view through the material is impaired by a ripple textured pattern on one side of the material. Visually, the obscure product is a close match to the Pilkington Stippolyte pattern.
Traditional Georgian wire grid pattern
Georgian wire polycarbonate imitates the look of the glass original with the familiar grid pattern etched to its surface.
Lightweight
Weighing less than half as much as glass alternatives, polycarbonate is a more practical and economical choice. Saving on transport costs can be substantial and the reduction of load on glazing framework and strictures is also greatly reduced.
Increased safety
Working with lightweight polycarbonate rather than glass has obvious advantages, not least that’s is virtually unbreakable. Safe to work with and safe in situ. Often used in public and commercial spaces because of its safety features.
10 year limited warranty
Obscure Gorgian Wire polycarbonate is supplied with a 10 year limited warranty against loss if impact and UV discoloration.
Recyclable
Polycarbonate is fully recyclable.
Brand
Plasiax™
Stock Sheet Sizes
2440mm x 1220mm
Minimum panel size
50mm x 50mm
Maximum panel size
2440mm x 1220mm
Relative density
1.2 g/cm³
Manufacturers thickness tolerance
+/- 5 % (e.g. 5mm polycarbonate sheet could vary from 4.75mm to 5.25mm)
Cutting tolerance
+/- 1mm
Material protection
Protective film on non textured size
Fire rating
UK Class 1Y
Service temperature
-50 to +100°c
Vicat softening temperature
148°c
Water absorption
0.10%
Recyclable
Yes
Data sheets
We offer fast, tracked delivery across the UK, using recognised couriers including Royal Mail, DHL and Parcel Force.
Shipping to Europe or North America? We now deliver to both from our dedicated regional stores. Visit our Europe store or North America store for pricing and delivery to your region.
How delivery is priced
Delivery is charged on the longest side of your panel, rather than its area or weight.
A sheet measuring 1500mm × 1000mm is priced on its 1500mm side; a long, narrow strip of 2200mm × 150mm is priced on its 2200mm side. Whichever single dimension is longest sets the price.
Only one delivery charge applies per order, however many pieces you order.
UK delivery costs
| Longest side | Standard | Express |
|---|---|---|
| Samples (100mm × 100mm) | £2.95 | £9.95 |
| Less than 500mm | £6.95 | £12.95 |
| 500mm – 999mm | £9.95 | £19.95 |
| 1000mm – 1999mm | £14.95 | £24.95 |
| 2000mm or greater | £19.95 | £29.95 |
Accessories are charged separately at £7.95 standard / £12.95 express.
Free delivery on orders over £250, excluding orders fulfilled direct from the manufacturer - see below.
All prices include VAT.
Delivery times
- Standard — 3–5 working days
- Express — 2–3 working days, prioritised over standard orders and sent via a recognised nationwide courier
Next-day delivery
We don't offer next-day delivery online due to the volume and the bespoke, made-to-measure nature of the orders we handle each day. If you're working to a deadline, get in touch — we'll do everything we can to meet it.
UK remote areas
Because we supply made-to-measure products, we offer delivery at standard national rates wherever we can. A small number of locations cost us more to reach, so a remote area supplement is added automatically at checkout:
| Longest side | Remote area supplement |
|---|---|
| Samples (100mm × 100mm) | £0.00 |
| Less than 500mm | £0.00 |
| 500mm – 1499mm | £10.00 |
| 1500mm – 2499mm | £15.00 |
| 2500mm or greater | £20.00 |
All prices include VAT.
Locations that may incur a supplement include the Channel Islands, Isle of Man, Isles of Scilly, Isle of Wight, the Scottish Islands and Highlands, remote areas of Scotland, and Northern Ireland.
In rare cases, an order to one of these areas may be economically unviable to fulfil. If that happens, we'll always contact you first to discuss options before taking any action — we won't simply cancel.
Third-party deliveries
Some products are dispatched directly from the manufacturer via a third-party courier. Where this applies, it's clearly stated on the product page under the Delivery tab.
Can I collect my order from Simply Plastics?
Yes, of course. Orders can be collected from our premises in Colchester, Essex. At the final stage of the checkout process there is a delivery option labelled "Collection/pickup" which is free. Once your order is complete, you will be notified by email along with our address and collection times.
I need my order urgently, can I pay for faster shipping?
Yes. We offer an express delivery service which aims to deliver all orders in 1-3 working days. Orders are delivered by a recognised courier company and may require a signature on delivery.
Where do Simply Plastics deliver?
We deliver across the UK, to 12 European countries (Austria, Belgium, the Czech Republic, France, Germany, Greece, Ireland, Italy, the Netherlands, Poland, Portugal and Spain) and to the United States and Canada.
International orders are placed through our dedicated regional stores, with pricing in your local currency and all import taxes and duties settled at checkout — so your order arrives with nothing more to pay. EU businesses with an EORI number can also choose to act as the importer of record.
For full pricing, delivery times and customs information, see the delivery information page on our UK, Europe or North America store.
Do you have a minimum order charge or small order fee?
This is a question we are asked fairly regularly due to the previlance of either a minimum order charge or small order fee within the industry.
At Simply Plastics our approach has always been to treat all orders equally, small or large. We want all customers, new and existing, to be able to place orders with us confident that they are only paying for the products and materials that they require. We therefore do not have a minimum order charge or small order fee.
How can I calculate the weight of a Polycarbonate Panel?
All of the different types of plastics that are available on our website, whether they be a panel, a disc, tube or rod, show the weight of the piece you require once you have entered your dimensions, shown in grams or kg.
The weight of any plastic can be calculated using the simple formula: Weight = Volume x Density
