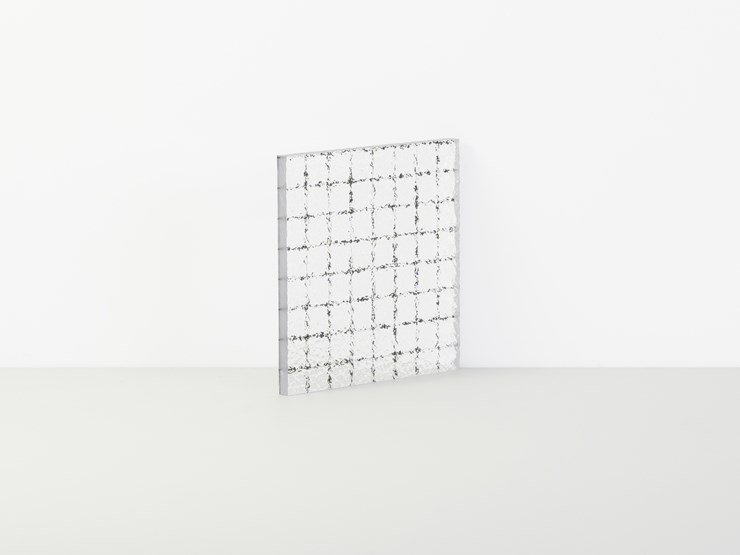

With the aesthetic of traditional Georgian wired glass this polycarbonate version obscures the view providing privacy while still transmitting high levels of light. The traditional grid pattern is etched directly to 6mm polycarbonate creating the effect of the steel cable within the glass version. The associated risks of working with glass can be greatly reduced by using this polycarbonate alternative.
Key features
- Obscure textured finish provides privacy
- Traditional Georgian wire grid pattern
- Virtually unbreakable
- Lightweight
- Safer than glass alternatives
- 10 year limited warranty against UV discolouration
- Fully recyclable
Typical applications
- Windows
- Door vision panels
- Roof glazing
- Sky lights
- Interior design
- Retail display
- Safety glazing
- Heritage and listing building glazing
Obscure textured finish
A clear view through the material is impaired by a ripple textured pattern on one side of the material. Visually, the obscure product is a close match to the Pilkington Stippolyte pattern.
Traditional Georgian wire grid pattern
Georgian wire polycarbonate imitates the look of the glass original with the familiar grid pattern etched to its surface.
Lightweight
Weighing less than half as much as glass alternatives, polycarbonate is a more practical and economical choice. Saving on transport costs can be substantial and the reduction of load on glazing framework and strictures is also greatly reduced.
Increased safety
Working with lightweight polycarbonate rather than glass has obvious advantages, not least that’s is virtually unbreakable. Safe to work with and safe in situ. Often used in public and commercial spaces because of its safety features.
10 year limited warranty
Obscure Gorgian Wire polycarbonate is supplied with a 10 year limited warranty against loss if impact and UV discoloration.
Recyclable
Polycarbonate is fully recyclable.
Brand
Plasiax™
Stock Sheet Sizes
2440mm x 1220mm
Minimum panel size
50mm x 50mm
Maximum panel size
2440mm x 1220mm
Relative density
1.2 g/cm³
Manufacturers thickness tolerance
+/- 5 % (e.g. 5mm polycarbonate sheet could vary from 4.75mm to 5.25mm)
Cutting tolerance
+/- 1mm
Material protection
Protective film on non textured size
Fire rating
UK Class 1Y
Service temperature
-50 to +100°c
Vicat softening temperature
148°c
Water absorption
0.10%
Recyclable
Yes
Data sheets
