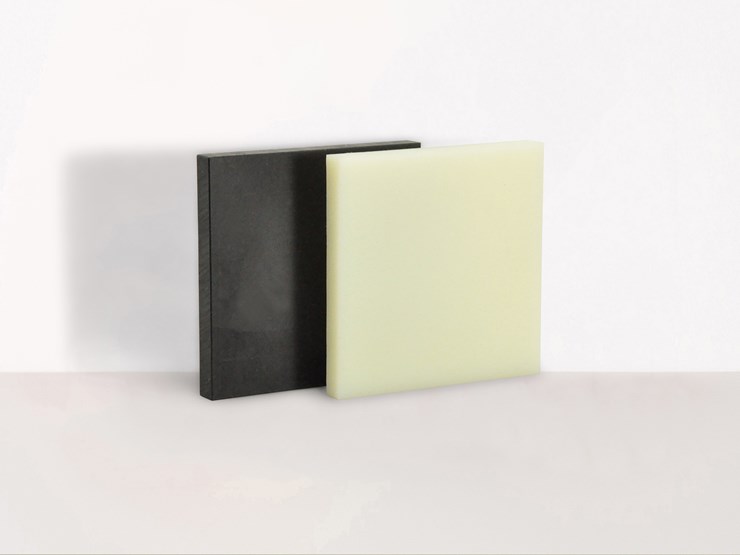

Nylon 6 Cast Sheet
photo_size_select_smallCut to size
{{coloursLength}} Colours
From
${{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }}
${{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }}
From
${{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }}
${{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }}
Bespoke Fabrication
We have the machinery and expertise to manufacture bespoke items in acrylic, polycarbonate and many other plastics, from one-offs to large production runs. Read more about the various services we offer, or complete the form below to request a quote.
CNC Routing
Our advanced Multicam Apex 3R (3 Axis) CNC routers allow us to provide an extensive range of precision CNC routing services. Read more
CNC Laser Cutting
Laser cutting is a fabrication process that uses a thin, intensely focused stream of light to cut through a range of different materials, including plastics and acrylics. Read more
Diamond & Flame polishing
Edge polishing is a fabrication process that polishes the edges of acrylic panels, removes any cutting marks, and achieves a smooth, glossy finish. Read more
Rotary & Laser Engraving
Laser engraving is a fabrication process that uses a laser beam to physically remove the surface of a material to create an indentation that is noticeable to both the eye and touch. Read more
Line Bending
Line bending is a process that’s used to make precise folds in plastic and acrylic components. Our line bending fabrication service allows us to bend plastic and acrylic sheets along a defined ‘line’ – without any need for gluing or joining. Read more
Have bespoke requirements?
Complete this form and we will get back to you with a quote.
Nylon 6 Cast (Polyamide 6 Cast or PA6C) is stronger and stiffer than extruded Nylon 6, with excellent wear resistance, machinability, and heat aging. Available in natural and black.
Key Features and Benefits
- High strength and stiffness: Offers excellent mechanical strength and rigidity, making it ideal for heavy-duty applications.
- Good creep resistance: Maintains its shape and dimensional stability under continuous stress or load.
- Easily machined: Despite its strength, Nylon 6 cast sheet is easier to machine than extruded Nylon, making it suitable for precision parts.
- High wear and heat resistance: Withstands friction and elevated temperatures, providing durability in demanding environments.
- Good temperature range (+105 to -30°C): Performs reliably across a wide temperature range, making it suitable for both low and high-temperature applications.
Typical Applications
- Gaskets: With good creep resistance and dimensional stability, Nylon 6 cast sheet is used for gaskets, providing a durable sealing solution in industrial applications
- Electrical Insulators: With excellent electrical insulation properties, Nylon 6 cast sheet is used in electrical engineering applications, protecting against electrical currents and providing safe, reliable performance.
- Crane Sheaves: Thanks to its strength and wear resistance, Nylon 6 cast sheet is used for crane sheaves, offering durability in heavy-duty lifting applications.
- Boom Pads: Nylon 6 cast sheet is commonly used for boom pads in construction and industrial machinery, providing excellent impact resistance and reducing friction between moving parts.
Colour Range and Applications
- Natural Nylon 6 Cast Sheet: Offers exceptional strength and wear resistance, making it suitable for general engineering, automotive, and industrial applications.
- Black Nylon 6 Cast Sheet: Enhanced with UV resistance, making it ideal for outdoor applications or environments with high exposure to sunlight.
Manufacturing Process - Casting
Cast Nylon 6 sheets are produced through a casting process, where liquid caprolactam is polymerised in a mold to form solid sheets. This method ensures:
- Lower internal stress
- Higher mechanical strength
- Greater thickness capabilities
The casting process results in a material with enhanced dimensional stability, improved wear resistance, and excellent machinability, making it ideal for high-load and precision engineering applications.
Cut to Size Bespoke Fabrication Services
Our cut to size service allows Nylon 6 Cast Sheets to be purchased in exact dimensions, avoiding the need to buy full, manufactured sheet sizes.
Bespoke Fabrication Services Include:
- CNC Laser Cutting: For precise and intricate designs.
- CNC Routing: Suitable for complex shapes and large-scale projects.
- Engraving: Perfect for personalised or technical detailing.
- Additional Finishing Options: Drilled holes, rounded corners, and edge polishing for a professional finish.
Sustainability and Recycling
Nylon 6 cast sheet can only be recycled through specialised processes. However, its durability and longevity reduce the need for frequent replacement, making it a more sustainable choice for long-term applications.
Minimum panel size
100mm x 100mm
Maximum panel size
1000mm x 1200mm
Specific gravity
1.14 g/cm³
Water absorption till saturation 23°C
9%
Maximum service temp. Upper temp limit - long term
70°C
Tensile strength
80 MPa
Fire performance
HB UL 94 (3mm thickness)
Thickness Tolerance
Data sheets
Colour availability & light transmission
Standard
Non-standard
Not available
Out of stock
Limited stock
| 10mm (LT) | 12mm (LT) | 16mm (LT) | 20mm (LT) | 25mm (LT) | 30mm (LT) | 35mm (LT) | 40mm (LT) | 45mm (LT) | 50mm (LT) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Black
|
||||||||||
|
Natural
|
We offer fast, tracked air delivery across North America, using recognised couriers including DHL.
Not shipping to North America? Visit our UK store or Europe store for delivery to your region.
Where we deliver
We currently deliver to the United States and Canada.
How delivery is priced
Delivery is priced by the size and weight of your panel, based on the band your order falls into:
| Panel size (up to) | Weight (up to) | Delivery |
|---|---|---|
| 500mm × 500mm | 10kg | $59 |
| 750mm × 750mm | 15kg | $79 |
| 1000mm × 1000mm | 25kg | $109 |
Orders that exceed the weight allowance for their band are charged $2.50 per additional kg.
Delivery times
Delivery is by air and takes 5–7 working days.
Customs, import taxes and duties
Our checkout meets US and Canadian customs and import requirements in full, so there are no surprises once your order ships. All orders are sent Delivered Duty Paid (DDP) — we collect and pay all import taxes and duties on your behalf, so your order arrives at your door with nothing more to pay.
Can I collect my order from Simply Plastics?
Yes, of course. Orders can be collected from our premises in Colchester, Essex. At the final stage of the checkout process there is a delivery option labelled "Collection/pickup" which is free. Once your order is complete, you will be notified by email along with our address and collection times.
I need my order urgently, can I pay for faster shipping?
Yes. We offer an express delivery service which aims to deliver all orders in 1-3 working days. Orders are delivered by a recognised courier company and may require a signature on delivery.
Do you have a minimum order charge or small order fee?
This is a question we are asked fairly regularly due to the previlance of either a minimum order charge or small order fee within the industry.
At Simply Plastics our approach has always been to treat all orders equally, small or large. We want all customers, new and existing, to be able to place orders with us confident that they are only paying for the products and materials that they require. We therefore do not have a minimum order charge or small order fee.
Is Nylon 6 Cast and Extruded waterproof?
Both forms of Nylon 6 (cast and extruded) are not fully waterproof, they are hygroscopic, meaning they naturally absorb moisture from the environment. Whilst they don't dissolve or degrade in water, the absorbed moisture can affect their performance and dimensions, especially in precision applications. Nylon 6 can absorb 2-3% by weight at typical room humidity or as much as 8-9% by weight at full saturation.
What is the difference between Cast and Extruded Nylon 6?
The main difference lies in how the material is manufactured. Nylon 6 Cast is stronger, tougher and has better wear resistance, whereas Nylon 6 Extruded is softer, easier to machine and more flexible.
Is Nylon 6 easy or difficult to bond?
Nylon 6 is generally difficult to bond and would need special adhesives
Is Nylon a Plastic?
Yes, nylon is a plastic — specifically, it’s a type of synthetic polymer belonging to the polyamide family. It was first developed in the 1930s and is one of the most widely used engineering plastics today.
Why Nylon is considered a Plastic
- Plastics are materials made of polymers — long chains of repeating molecules.
- Nylon is a man-made polymer produced through chemical polymerisation, making it a synthetic plastic.
- It’s classified as a thermoplastic, meaning it:
- Softens when heated.
- Hardens again when cooled.
- Can be melted, extruded, and remoulded into different shapes like rods, sheets, or fibres.
More specific information on Nylon can be found on our blog, see Why Engineers Rely on Nylon 6 for High-Load, High-Wear Applications
