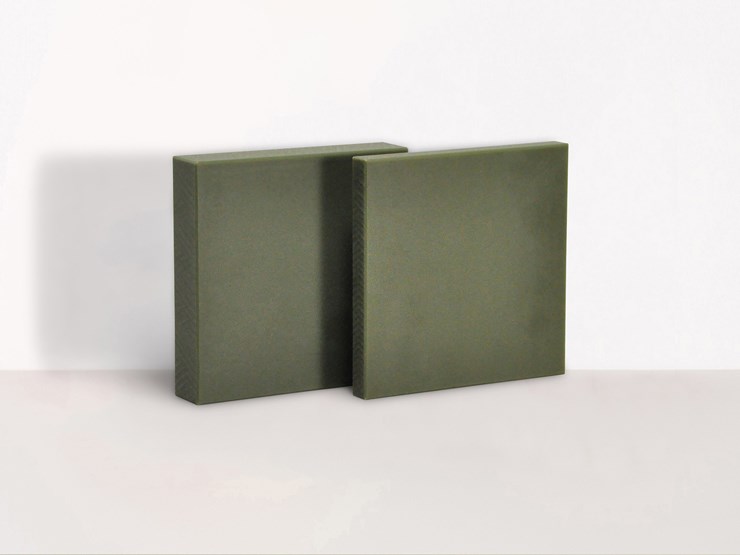

Nylon 6 Oil Filled LFX Cast Sheet
photo_size_select_smallCut to size
{{coloursLength}} Colours
From
${{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }}
${{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }}
From
${{ (incVAT() ? initialPrice.incVAT : initialPrice.exVAT).toFixed(2) }}
${{ (incVAT() ? initialPrice.salePriceIncVAT : initialPrice.salePriceExVAT).toFixed(2) }}
Bespoke Fabrication
We have the machinery and expertise to manufacture bespoke items in acrylic, polycarbonate and many other plastics, from one-offs to large production runs. Read more about the various services we offer, or complete the form below to request a quote.
CNC Routing
Our advanced Multicam Apex 3R (3 Axis) CNC routers allow us to provide an extensive range of precision CNC routing services. Read more
CNC Laser Cutting
Laser cutting is a fabrication process that uses a thin, intensely focused stream of light to cut through a range of different materials, including plastics and acrylics. Read more
Diamond & Flame polishing
Edge polishing is a fabrication process that polishes the edges of acrylic panels, removes any cutting marks, and achieves a smooth, glossy finish. Read more
Rotary & Laser Engraving
Laser engraving is a fabrication process that uses a laser beam to physically remove the surface of a material to create an indentation that is noticeable to both the eye and touch. Read more
Line Bending
Line bending is a process that’s used to make precise folds in plastic and acrylic components. Our line bending fabrication service allows us to bend plastic and acrylic sheets along a defined ‘line’ – without any need for gluing or joining. Read more
Have bespoke requirements?
Complete this form and we will get back to you with a quote.
LFX Oilon Nylon 6 is a self-lubricating, oil-filled cast nylon for high-load, slow-moving parts. Its low friction and wear resistance reduce maintenance in demanding industrial uses.
Key Features and Benefits
- Advanced Lubrication: The integrated lubricants within the LFX Oilon sheet provide continuous lubrication throughout the material's lifetime, reducing the need for additional external lubrication.
- Reduced Coefficient of Friction (up to 50%): The material offers up to 50% lower friction compared to standard cast nylon, making it highly effective in reducing wear on moving parts.
- High Loads on Slow-Moving Parts: Ideal for slow-moving, high-load applications, providing excellent performance in industrial machinery and conveyor systems.
- Better Wear Resistance: Superior resistance to abrasion and friction, making it a long-lasting solution for components subjected to regular mechanical stress.
- Lower Water Absorption: The material absorbs less moisture than standard nylon, ensuring greater dimensional stability in humid or wet environments.
Typical Applications
- Conveyor Parts: LFX Oilon sheet is ideal for conveyor components due to its low friction and high wear resistance, ensuring smooth and efficient operation.
- Wear Pads: Used extensively in wear pads, the sheet reduces friction and extends the lifespan of parts exposed to constant contact and abrasion.
- Chain Guides: LFX Oilon is perfect for chain guides as its self-lubricating properties and durability help reduce wear on chains and enhance operational efficiency.
Colour Application
The distinctive oil-filled green colour indicates its self-lubricating properties, making it easily recognisable for industrial applications requiring reduced friction and enhanced wear resistance.
Specific Gravity 1.135
A specific gravity of 1.135 means the material is heavier than water, increasing weight, energy consumption, and costs in some applications. It also limits buoyancy, making it unsuitable for floating uses.
Not suitable for food applications
This material is not food compliant with EU and FSA regulations.
Manufacturing Process - Casting
LFX Oilon sheets are produced through a casting process, where the material is formed with integrated lubricants for enhanced performance. This method ensures:
- Consistent lubricant distribution
- Uniform wear resistance
- Reduced friction properties
The casting process results in a self-lubricating material with excellent dimensional stability, lower friction, and improved durability, making it ideal for high-load, slow-moving applications like bearings, gears, and wear components.
Cut to Size Bespoke Fabrication Services
Our cut to size service allows you to purchase LFX Oilon sheet panels in the exact dimensions you need, without having to buy full, manufactured sheet sizes. We don’t charge for cutting standard shapes and sizes listed on our website.
For more customised projects, we also offer bespoke fabrication services, including:
- CNC Laser Cutting – For precise and intricate designs.
- CNC Routing – Ideal for complex shapes and large-scale projects.
- Engraving – Perfect for personalised or technical detailing.
- Additional options – Such as drilled holes, rounded corners, and edge polishing for a professional finish.
Sustainability and Recycling
LFX Oilon sheet can only be recycled through specialised processes. However, its durability and extended lifespan reduce the need for frequent replacements, making it a more sustainable choice for long-term industrial applications.
Minimum panel size
100mm x 100mm
Maximum panel size
1000mm x 1200mm
Specific gravity
1.14 g/cm³
Water absorption till saturation 23°C
6.30%
Maximum service temp. Upper temp limit - long term
90°C
Tensile strength
73 MPa
Fire performance
HB UL 94
Thickness Tolerance
Data sheets
Colour availability & light transmission
Standard
Non-standard
Not available
Out of stock
Limited stock
| 10mm (LT) | 12mm (LT) | 16mm (LT) | 20mm (LT) | 25mm (LT) | 30mm (LT) | 35mm (LT) | 40mm (LT) | 45mm (LT) | 50mm (LT) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
Green
|
We offer fast, tracked air delivery across North America, using recognised couriers including DHL.
Not shipping to North America? Visit our UK store or Europe store for delivery to your region.
Where we deliver
We currently deliver to the United States and Canada.
How delivery is priced
Delivery is priced by the size and weight of your panel, based on the band your order falls into:
| Panel size (up to) | Weight (up to) | Delivery |
|---|---|---|
| 500mm × 500mm | 10kg | $59 |
| 750mm × 750mm | 15kg | $79 |
| 1000mm × 1000mm | 25kg | $109 |
Orders that exceed the weight allowance for their band are charged $2.50 per additional kg.
Delivery times
Delivery is by air and takes 5–7 working days.
Customs, import taxes and duties
Our checkout meets US and Canadian customs and import requirements in full, so there are no surprises once your order ships. All orders are sent Delivered Duty Paid (DDP) — we collect and pay all import taxes and duties on your behalf, so your order arrives at your door with nothing more to pay.
Can I collect my order from Simply Plastics?
Yes, of course. Orders can be collected from our premises in Colchester, Essex. At the final stage of the checkout process there is a delivery option labelled "Collection/pickup" which is free. Once your order is complete, you will be notified by email along with our address and collection times.
I need my order urgently, can I pay for faster shipping?
Yes. We offer an express delivery service which aims to deliver all orders in 1-3 working days. Orders are delivered by a recognised courier company and may require a signature on delivery.
Do you have a minimum order charge or small order fee?
This is a question we are asked fairly regularly due to the previlance of either a minimum order charge or small order fee within the industry.
At Simply Plastics our approach has always been to treat all orders equally, small or large. We want all customers, new and existing, to be able to place orders with us confident that they are only paying for the products and materials that they require. We therefore do not have a minimum order charge or small order fee.
Is Nylon 6 Cast and Extruded waterproof?
Both forms of Nylon 6 (cast and extruded) are not fully waterproof, they are hygroscopic, meaning they naturally absorb moisture from the environment. Whilst they don't dissolve or degrade in water, the absorbed moisture can affect their performance and dimensions, especially in precision applications. Nylon 6 can absorb 2-3% by weight at typical room humidity or as much as 8-9% by weight at full saturation.
What is the difference between Cast and Extruded Nylon 6?
The main difference lies in how the material is manufactured. Nylon 6 Cast is stronger, tougher and has better wear resistance, whereas Nylon 6 Extruded is softer, easier to machine and more flexible.
Is Nylon 6 easy or difficult to bond?
Nylon 6 is generally difficult to bond and would need special adhesives
Is Nylon a Plastic?
Yes, nylon is a plastic — specifically, it’s a type of synthetic polymer belonging to the polyamide family. It was first developed in the 1930s and is one of the most widely used engineering plastics today.
Why Nylon is considered a Plastic
- Plastics are materials made of polymers — long chains of repeating molecules.
- Nylon is a man-made polymer produced through chemical polymerisation, making it a synthetic plastic.
- It’s classified as a thermoplastic, meaning it:
- Softens when heated.
- Hardens again when cooled.
- Can be melted, extruded, and remoulded into different shapes like rods, sheets, or fibres.
More specific information on Nylon can be found on our blog, see Why Engineers Rely on Nylon 6 for High-Load, High-Wear Applications
